THE JAIL

⚡ Pi Zero 2 W  ·  ESP32  ·  It owns the spectrum ⚡

An industrial-grade RF penetration platform built on a Raspberry Pi Zero 2 W with an ESP32 attack co-processor. Wi-Fi karma, deauth, evil twin, captive portal, Sub-GHz capture/replay, NFC, IR, all driven wirelessly from your phone — wherever you are in the world.

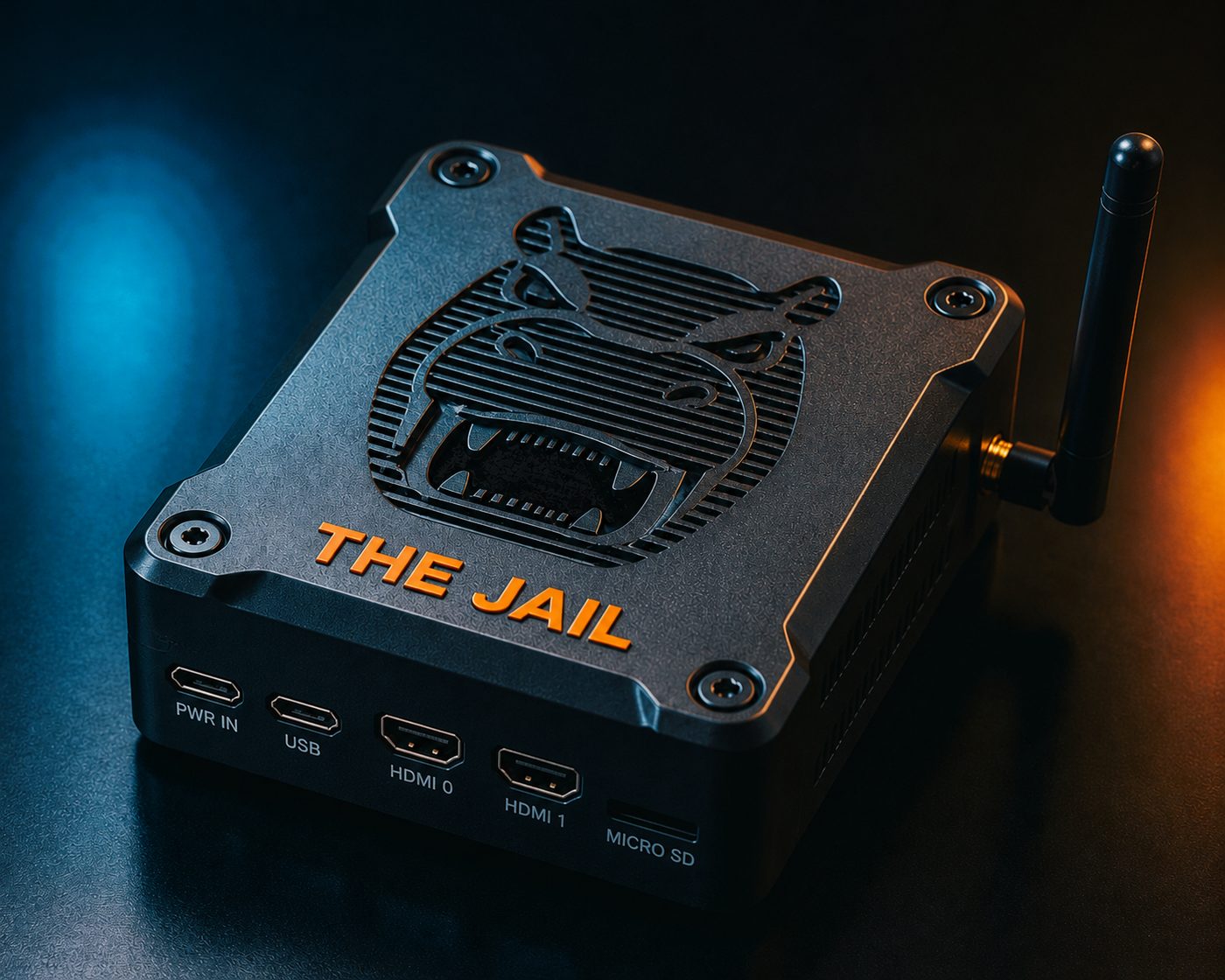

The Jail — render of the device, matte black case with orange THE JAIL wordmark and hippo head etched into the vented top, antenna on the right.
🔒 🦛 THE JAIL · IT OWNS THE SPECTRUM · KICKSTARTER AUGUST 2026
🦛 SEE THE HARDWARE

/ THE HARDWARE

Two radios. One mind. Pi handles brains, ESP32 handles attacks.

RPI · ZERO 2 WH

// THE BRAIN
  • BLE GATT server — phone discovers it as TheJail-Pi0-2WH
  • Cloud relay client — stays online via overlapping WebSocket rollover (zero downtime)
  • Wi-Fi watchdog — auto-reconnects if station drops, kills brcmfmac powersave permanently
  • MongoDB-backed signal store — every captured frame, every Sub-GHz code, every probe
  • Live system vitals — CPU, temp, mem, uptime to your phone in real time

ESP32 · WROOM

// THE TEETH
  • USB serial co-processor — talks JSON over /dev/ttyUSB0 to the Pi
  • Real packet injection — 802.11 deauth, beacon flood, evil twin frames
  • Promiscuous probe sniffer — channel-hops 1→13 capturing every nearby device
  • Karma + Evil Twin AP — built-in captive portal grabs creds, ring buffer of 30
  • Pi keeps its own Wi-Fi — ESP32 does the dirty work so the relay never drops

⚠ Ethical Use Only

Wi-Fi attacks, captive portals, and Sub-GHz replay are illegal against systems you don't own or have explicit written permission to test. The Jail is built for security research, your own gear, and authorized engagements. Don't be a dick.

/ FEATURES

Live, in-flight, and on the roadmap.

📡

WI-FI ATTACK SUITE

LIVE
  • Real 802.11 deauth via ESP32 injection
  • Karma — fake AP that accepts any SSID
  • Evil Twin clone with optional WPA2
  • Captive portal credential capture (ring buffer 30)
  • Probe-request sniffer w/ channel hopping
  • Beacon flood (fake AP names)
  • Live AP scan with RSSI + BSSID
🦛

CLOUD RELAY

LIVE
  • Drive your Pi from anywhere on earth
  • Overlapping WebSocket rollover — zero gap
  • Auto-reconnect grace window on disconnect
  • No port forwarding, no DDNS, no NAT pain
  • "Recent device" cache — no false-offline alerts
🦷

BLE BRIDGE

LIVE
  • Direct BLE GATT (no internet needed)
  • Service UUID: 4d-41-4b-4f… "MAKO"
  • Custom write/notify protocol
  • Pi advertises as TheJail-Pi0-2WH
🛰️

SUB-GHZ

LIVE
  • CC1101 transceiver, 300–928 MHz
  • RSSI sweep across all common ISM bands
  • Raw OOK capture + bit-perfect replay
  • Preset library: garage doors, car fobs, TPMS, weather, LoRa ISM
  • Saved captures live in your cloud signal library
📱

NFC 13.56 MHz

LIVE
  • PN532 over I2C
  • Read any ISO14443A tag — full UID + type ID
  • Full MIFARE Classic 1K dump (13 default-key dictionary)
  • Block-level read/write/clone to Magic Card
  • NTAG21x / Ultralight support
📺

IR UNIVERSAL REMOTE

LIVE
  • KY-005 TX + KY-022 RX modules (plug-and-play)
  • Kernel-driver IR transmit (precise 38 kHz carrier)
  • LEARN mode — capture any remote in 2 seconds
  • NEC / Samsung / Sony / RC5/RC6 preset library
  • "TV-Off" brute-force power-off sweep
🎥

PI CAMERA

PLANNED
  • Live preview in app
  • Snapshot + record
  • Motion-trigger capture
  • Streaming via cloud relay
⌨️

BADUSB

LIVE
  • Pi-Zero-as-keyboard via USB HID gadget
  • DuckyScript-compatible — REM / STRING / DELAY / GUI / CTRL / ALT / SHIFT
  • 500-line script cap, named-key shortcuts
  • PIN-locked client-side before any injection
  • Pre-loaded examples: Notepad pwn, terminal pop, lock-screen prank
📶

BLE SCANNER

LIVE
  • Pi-side passive scan via BlueZ + bleak
  • Address, RSSI, advertised services, manufacturer ID decode
  • Apple / Microsoft / Samsung / Tile / Garmin / Bose recognized
  • Up to 200 devices per 20 s window
⚙️

GPIO PLAYGROUND

LIVE
  • Visual grid of every safe GPIO pin
  • Read with optional pull-up/down
  • Write HIGH/LOW, one-shot pulse
  • Software PWM (1 Hz – 10 kHz, 0–100% duty)
  • Hardware-reserved pins fenced off — can't brick your rig
🔒 PATENT APPLICATION IN PREPARATION
🔒 PATENT PENDING · U.S. + INTERNATIONAL

/ PROPRIETARY ARCHITECTURE

Three novel inventions protect THE JAIL. Unauthorized replication, reverse-engineering, or rebranding is prohibited.

CLAIM 01

Cloud-Relayed Command Architecture

A dedicated-radio separation pattern that lets one wireless interface stay locked to command-and-control while a co-processor handles every RF attack. Result: worldwide remote control without ever losing the link to your device.

Worldwide remote control
CLAIM 02

Rolling-Pair Failover

A novel persistence layer that opens a successor connection before the predecessor is torn down by ingress proxies — eliminating the offline window that breaks every other cloud-relayed pentest tool on the market.

Zero-downtime connection
CLAIM 03

Hardware-Anchored Anti-Clone

A tamper-resistant secure element signs every device heartbeat. The relay rejects counterfeit firmware even when the binary is bit-for-bit identical — making chip-off cloning commercially worthless.

Counterfeit-proof

© 2026 Unrivaled Tech · All rights reserved. THE JAIL™ and the Hippo mark are common-law trademarks of the inventor; federal registrations pending under USPTO Classes 009 + 042. The architecture described above is the subject of a U.S. patent filing in preparation. Public disclosure on this page is intentional and dated; it does not constitute an enabling disclosure of the claims.

/ SEE IT WORK

Real Wi-Fi scan output from a working rig (no simulator).

raspberry@raspberry: ~ — the-jail.service @959ab5512b944118

/ GET STARTED

Three steps. About 10 minutes. Everything you need to bring The Jail online.

1 Flash Raspberry Pi OS Lite (64-bit) onto your Pi Zero 2 W's microSD

Use Raspberry Pi Imager. In the settings pane, pre-configure Wi-Fi (SSID + password), enable SSH, and set a hostname (we recommend thejail). Boot the Pi and SSH in.

2 Run the installer

SSH into the Pi, then paste the one-line install command. It downloads the daemon, all six hardware modules (NFC / Sub-GHz / IR / BadUSB / BLE-Scan / GPIO), installs dependencies, and starts the systemd service:

curl -fsSL https://<backer-URL-emailed-after-Kickstarter>/install.sh | sudo bash

🔒 The exact install URL and one-time access token are emailed to every Kickstarter backer after the campaign closes. Takes about 3–5 minutes. Reboots automatically at the end.

3 Open the app + pair your phone

Open the companion PWA in Chrome / Safari on your phone (link emailed to backers). Add to Home Screen. Grab the 6-digit pair code from the Pi's boot log (sudo journalctl -u the-jail -n 20 | grep "PAIR CODE"), type it in the app — done.

📦 Pi Installer

One-shot bash script.

🔒 Backers only

📐 Hardware Blueprint

Locked-in Pi pinout for every module.

🔒 Backers only

🔌 ESP32 Firmware

Latest v0.3.0 for the Wi-Fi coprocessor.

🔒 Backers only

/ OUR STORY

THE JAIL is being built by a small family workshop on Vancouver Island, British Columbia. Every prototype is soldered, tested, and quality-checked by hand — by the inventor, his brother, and his wife — before it ever ships. When we scale to thousands after Kickstarter, the pace picks up, but the standard doesn't. Quality over speed. 🍁 PROUDLY CANADIAN · BUILT ON VANCOUVER ISLAND

Since 2022

Four years of iteration. Three complete rebuilds. Every restart taught us something we couldn't have learned any other way — from firmware architecture to enclosure ergonomics. The current design is not the first attempt. It's the one that finally worked.

Family Workshop

While we wait on the production perfboards, the Kickstarter backer units are being built by three people at one bench. Every device is inspected, powered up, and paired to a phone before it leaves. You'll receive something we personally stood behind.

Independent & Owner-Operated

No venture capital. No investors dictating the roadmap. Just an engineer, his family, and the community we're building alongside. Kickstarter backers are our first customers — and our design partners.

/ ROADMAP

Started in 2022. Rebuilt from scratch three times. Now on the final architecture — launching on KICKSTARTER · AUGUST 2026.

CONCEPTION
2022
RESTART · v1
2023
RESTART · v2
2024
FINAL ARCHITECTURE
MAY '25
APP + LOCKDOWN
JUN '26
▼ YOU ARE HERE
KICKSTARTER
AUG '26
PRODUCTION PREP
Q4 '26
SCALED PRODUCTION
Q1 '27
SHIPPING
Q2 '27

THE JAIL is in its final stages of development — hardware design LOCKED · firmware WRITTEN · 3D enclosure PRINTED. Awaiting final perfboard solder + RF compliance test.

✓ SHIPPED

  • BLE GATT + Cloud Relay
  • Wi-Fi attack suite (5 working ops)
  • ESP32 firmware v0.3.0
  • Captive credential capture
  • Pi Vitals dashboard
  • Wi-Fi watchdog + auto-recovery
  • IR universal remote (KY-005 + KY-022)
  • Sub-GHz transceiver (CC1101, 300–928 MHz)
  • NFC reader/writer (PN532, MIFARE Classic dump/clone)
  • BadUSB (HID gadget, PIN-locked DuckyScript)
  • BLE Scanner (manufacturer-ID decode)
  • GPIO Playground (toggle/pulse/PWM)
  • CSV / JSON signal export

→ IN FLIGHT  — LANDS BEFORE KICKSTARTER

  • LF RFID (125 kHz — EM4100 / HID Prox / T5577 clone)
  • GPS-tagged war-driving (NEO-6M module)
  • Hardware-anchored anti-clone (ATECC608A secure element)
  • CH9329 dedicated USB-HID (always-on BadUSB)
  • DS3231 RTC (accurate timestamps offline)
  • 0.96″ OLED status display
  • Haptic + audio + RGB feedback
  • Encrypted signal library backups (AES-GCM)
  • End-to-end encrypted comms (PWA ↔ Pi)
  • Audit log + tamper-evident chain
  • Self-hosted backend (Docker drop-in)
  • Keeloq rolling-code bruteforce

/ FAQ

Quick answers.

What is The Jail and how is it different from a Flipper Zero?

Flipper Zero is great for short-range RF / NFC / IR tinkering, but it's hardware-locked, has a tiny screen, and you can't drive it from across the planet. The Jail is a Pi Zero 2 W + ESP32 in a custom enclosure that runs your favorite Flipper-style attacks AND adds: real packet injection (deauth/beacon flood), captive portal credential capture, full Wi-Fi station, network reconnaissance, and remote control over a cloud relay or BLE — all from a phone app.

Why two radios (Pi + ESP32) instead of just the Pi?

The Pi Zero 2 W has one Wi-Fi radio, and that radio can only do ONE of these at a time: be a station (connected to your home Wi-Fi), be an AP (Karma/Evil Twin), or be in monitor mode (sniffing). Running attacks on the Pi's radio kicks the Pi off your Wi-Fi and breaks the relay. The ESP32 is a dedicated second radio that handles all attacks while the Pi stays online to manage the bridge.

What hardware do I need?

Required: Raspberry Pi Zero 2 W (with 40-pin headers), micro-SD card (8 GB+), 5 V/2.5 A power supply, Freenove ESP32-WROOM (or any ESP32 dev board), Micro-USB OTG adapter, USB cable. Optional: TSOP4838 IR receiver, 940 nm IR LED, CC1101 module (Sub-GHz), PN532 module (NFC), Pi Camera.

Is this legal?

Owning the device and running it against your own gear is legal everywhere I know of. Running deauth, evil twins, or captive portals against networks/devices you don't own is a serious crime in most jurisdictions (CFAA in the US, similar laws elsewhere). Use The Jail only on equipment you own or have explicit written authorization to test.

Where does the cloud relay run? Do I need to pay?

The cloud relay is a tiny FastAPI server with a WebSocket endpoint. You can self-host it on any $5/month VPS (Hetzner / DigitalOcean / OVH), or use the public preview backend during early development. The Pi-side and ESP32-side code is yours forever — once you self-host the backend, there's no ongoing cost.

Can the captive portal capture HTTPS sites?

No, and that's by design. The captive portal serves its own HTTP page (not a clone of an HTTPS site). Any modern browser will refuse to send credentials to an HTTP form pretending to be google.com. The portal works because phones auto-pop a "Sign in to Wi-Fi" sheet over HTTP when they detect a captive network — and victims voluntarily type into that sheet.

> >
